Rename

Works with Bricscad (Windows) Classic, Pro and Platinum, Bricscad (Linux) Classic and Pro

Renames named entities through the Drawing Explorer.

Accessing the Command

command bar:  rename

aliases:  ren, ddrename

: rename

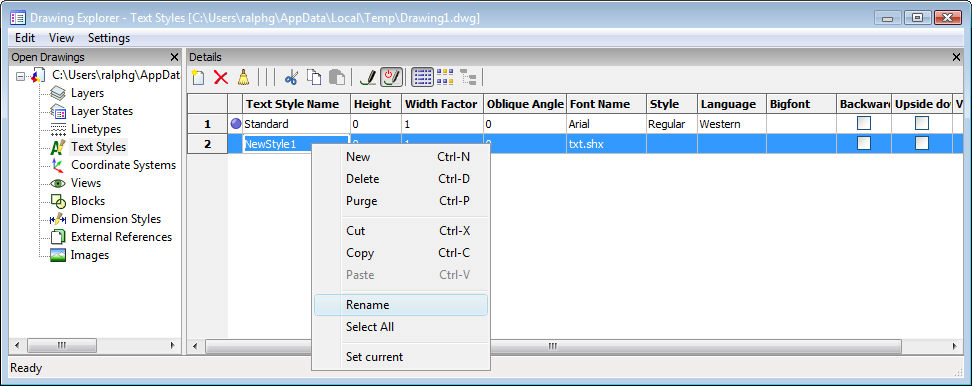

Displays the Drawing Explorer:

To rename an item, click twice on its name (don't double-click!), and then enter the new name.

Alternatively, right-click the name, and then choose Rename from the shortcut menu.

You can change the names of most layers, layer states, most linetypes, UCSs, views, blocks, most text styles, and most dimension styles.

You cannot change the names of  attached images and external references.

You cannot change the following names:

• Layers - 0

• Linetypes - ByBlock, ByLayer, Continuous

• Text styles - Standard

• Dimension styles - Standard

To rename at the command line, use the -Rename command.

Command Options

No options.

Related Command

-Rename - renames commands through the command bar.
