Tablet

Works with Bricscad (Windows) Classic, Pro and Platinum, Bricscad (Linux) Classic and Pro

Configures and calibrates tablets, and toggles tablet mode.

Accessing the Command

command bar: tablet

shortcut: T

alias: ta

menu bar: Settings | Tablet

status bar: TABLET

: tablet

Prompts you in the command bar:

Tablet: ON/OFF/CALibrate/ConFiGure/<On>: (Enter an option.)

This command requires that Wintab32.dll from Wacom Technology, Corp. be installed on the computer.

Download Wintab32.dll from the internet, then place the file in your system directory: C:\Windows\System32.

Command Options

Option	Description
ON	Turns on tablet digitizing mode. The entire surface of the table is used like a mouse for picking points and selecting entities.
OFF	Turns off tablet digitizing mode. The menu areas become available for selecting commands.
CALibrate	Calibrates the coordinates of the tablet.
ConFiGure	Configures the tablet's menu areas.

Status Bar Menu

Right-click TABLET on the status bar for the shortcut menu:

Shortcut Menu	Description
ON	Turns on tablet digitizing mode.
OFF	Turns off tablet digitizing mode.

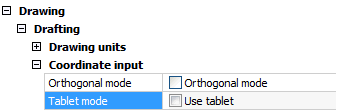

Settings	Opens the Coordinate Input section of the Settings dialog box.
Tablet mode	Toggles tablet mode: On - switches tablet to digitizing mode. Off - switches tablet to command selection mode.

Related Commands

None.
