DmConstraintsBar

Works with BricsCAD (Windows) Platinum, BricsCAD (Linux) Platinum

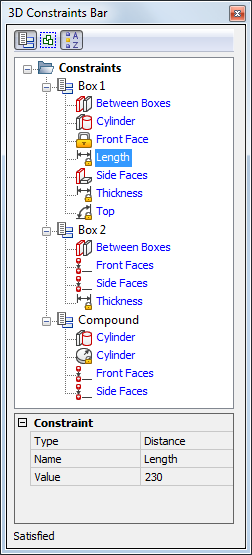

Displays the 3D Constraints bar.

Accessing the Command

command bar:  dmconstraintsbar

menu bar:  Parametric | 3D Constraints Bar

toolbar:  3D Constraints |



: dmConstraintsBar

Displays the 3D Constraints bar.

By default the 3D Constraints bar is docked a the right hand side of the BricsCAD application window, below the Properties bar.

Command Options

Option

Icon

Description

Group by Entity

Groups the 3D constraints by entity (body).

Group by Type

Groups the 3D constraints by constraint type.

Alphabetic Sort

Sorts the 3D constraints alphabetically.



Name

Current name of the entity (body).
Click the field to rename.

Value



Current value of a dimensional constraint.

Click the field to edit.





Context Menu

Right click a constraint, then click Delete to delete  the constraint.

Related Commands

DmConstraint3D - applies geometric relationships and dimensional constraints between subentities (faces, surfaces, edges, ...) of 3D entities.

DmUpdate - Forces 3d constraints to update.



DmCoincident3d - applies a coincident constraint between two edges, two faces or an edge and a face of two different solids.

DmConcentric3d - applies a concentric constraint between two cylindrical, spherical or conical surfaces.

DmFix3d - Applies a fixed constraint to a solid or to an edge or a face of a solid.

DmParallel3d - applies a parallel constraint between two faces of a solid or of different solids.

DmPerpendicular3d - applies a perpendicular constraint between two faces of a solid or of different solids.

DmRigidSet3d - Allows to define a set of entities or subentities as a rigid body.

DmTangent3d - applies a tangent constraint between a face and a curved surface of different solids.



DmAngle3d - applies an angle constraint between two faces of a solid or of different solids.

DmDistance3d - applies a distance constraint between two subentities of a solid or of different solids.

DmRadius3d - applies a radius constraint to cylindrical surfaces or circular edges.
