OSnap

Works with BricsCAD (Windows) Classic, Pro and Platinum, BricsCAD (Linux) Classic, Pro and Platinum

Sets entity snaps through the Settings dialog box (short for "object snap").

Accessing the Command

command bar: osnap

transparent: 'osnap

shortcut: F8

alias: ddosnap, ddesnap, os, setesnap

menu bar: Settings | Entity Snap Settings

toolbar: Settings |

status bar: ESNAP

: osnap

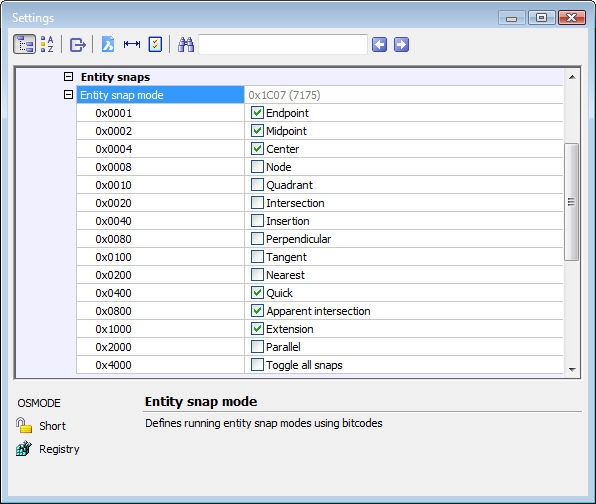

Displays the Entity Snaps section of the Settings dialog box:

Change a setting, and then click X.

Command Options

Option	Description
Endpoint	Toggles endpoint entity snap mode. Snaps to the end points of open entities, such as lines,arcs, open polylines,and open splines. Can also be toggled with the Endpoint command.
Midpoint	Toggles midpoint entity snap mode. Snaps to the midpoint of open entities. Can also be toggled with the Midpoint command.
Center	Toggles center entity snap mode. Snaps to the center of circular entities, such as circles, arcs, and polyarcs. Can also be toggled with the Center command.
Node (Point)	Toggles node entity snap mode. Snaps to point entities. Can also be toggled with the Node command.
Quadrant	Toggles quadrant entity snap mode. Snaps to the quadrants points of circular entities, such as circles, arcs, and polyarcs. Can also be toggled with the Quadrant command.
Intersection	Toggles intersection entity snap mode. Snaps to the intersection of any pair of entities. Can also be toggled with the Intersection command.
Insertion	Toggles insertion entity snap mode. Snaps to the insertion point of blocks and text. Can also be toggled with the Insertion command.
Perpendicular	Toggles perpendicular entity snap mode. Snaps to the perpendicular of one entity to another. Can also be toggled with the Perpendicular command.
Tangent	Toggles Tangent entity snap mode. Snaps to the tangencies of circular entities. Can also be toggled with the Tangent command.
Nearest	Toggles nearest entity snap mode. Snaps to the nearest point on any entity. Can also be toggled with the Nearest command.
Quick	Toggles quick entity snap mode. Snaps to the first geometric feature of entities. Can also be toggled with the Quick command.
Apparent Intersection	Toggles Apparent entity snap mode. Snaps to the apparent intersection of entities in 3D space. Can also be toggled with the Apparent command.
Extension	Toggles extension entity snap mode. Snaps to the intersection of open entities, as if they were extended to the point of intersection. Can also be toggled with the Extension command.
Parallel	Toggles parallel entity snap mode. Snaps to the parallel point of entities. Allows to draw lines, polyline segments, xlines and rays parallel to another entity. Can aso be toggled with the Parallel command.
Toggle all snaps	Turns all entity snap modes off. Modes can also be turned off with the None command.
