XOpen

Works with BricsCAD (Windows) Classic, Pro and Platinum, BricsCAD (Linux) Classic, Pro and Platinum

Opens an externally-referenced drawing (Xref) for editing in a separate window.

Accessing the Command

command bar:  xopen

menu: Xref context menu | Open Xref

toolbar: Drawing Explorer - External References |

: xopen

If launched from the command bar, prompts you:

Select reference: (Click an externally-referenced drawing in the current drawing)

If launched from the context menu or the from the Drawing Explorer - External References toolbar, the externally-referenced drawing is opened right away.

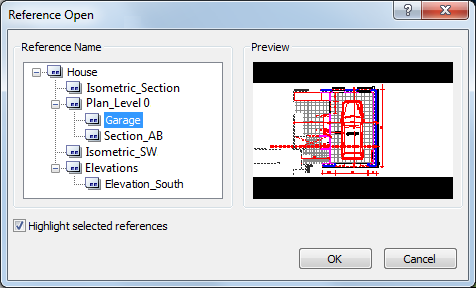

If the selected externally-referenced drawing contains nested references a dialog box displays to let you choose the drawing to be opened:

Command Options

No Options

Related Commands

Refedit - edits block references and externally-referenced drawings through a dialog box.
