BimIfcImport

Platinum Platinum Platinum

Imports an IFC model file in the current drawing.

Accessing the Command

command bar: bimifcimport

menu bar: File| Import

: bimifcimport

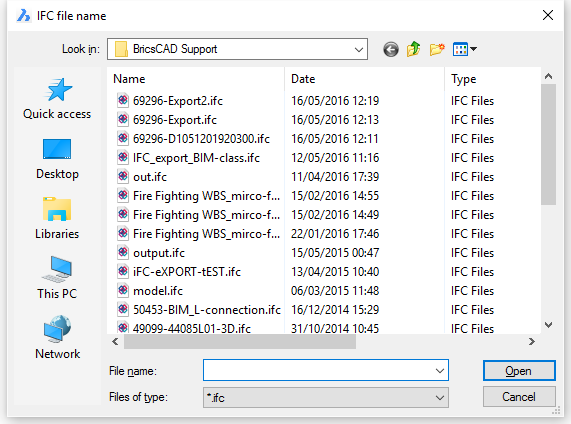

Displays a File dialog box:

xx object(s) have been imported.

Command Options

Option	Description
	The import of IFC files is controlled through user preferences:
IfcImportSpaces	When checked, spaces are imported as 3D Solids.
IfcImportBimData	When checked, imported objects are classified as Building Elements, Walls, Slabs, Beams, Columns, Windows or Doors according to their IFC class.

Related Commands

BimExport - saves a BIM model as an IFC file for use with an IFC-certified applications.

Import - imports the geometry from external files into the current drawing.
