Match Properties

Command: MATCHPROP

The Matchprop command assigns the properties of one entity to one or more other entities (short for "match properties").

To copy properties between entities

1.  Do one of the following:
2. Click the Match () tool button on the Standard toolbar.
3. Type match in the command bar then press Enter.

You are prompted:
Select entity to copy properties from:

2. Select the source entity.
   You are prompted:
   Active Settings: 'Color' 'Layer' 'Linetype' 'Linetype Scale' 'Lineweight' 'Thickness' 'Plot Style' 'Dimension' 'Polyline' 'Material' 'Text' 'Shadow Display' 'Hatch' 'Multileader'
   Select entities to copy properties to or [Settings]:
3. (option) Type S, then press Enter.

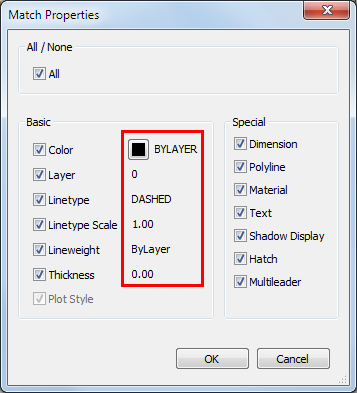

   The Match Properties dialog box displays:

The entity properties you are about to copy display in the Match Properties dialog.

Adjust the settings, then click the OK button

4. Select the target entities.
   You are prompted: Select entities to copy properties to or [Settings]:
5. Do one of the following:
6. (option) Repeat step 3 to adjust the settings, then select more target entities.
7. Right click or press Enter to stop.
