VSlide

Works with Classic, Pro

Displays images saved as SLD or WMF files (short for "view slide").

Accessing the Command

command bar: vslide

aliases: vs, vsnapshot

menu bar: Tools | View Snapshot

toolbar: Tools |

: vslide

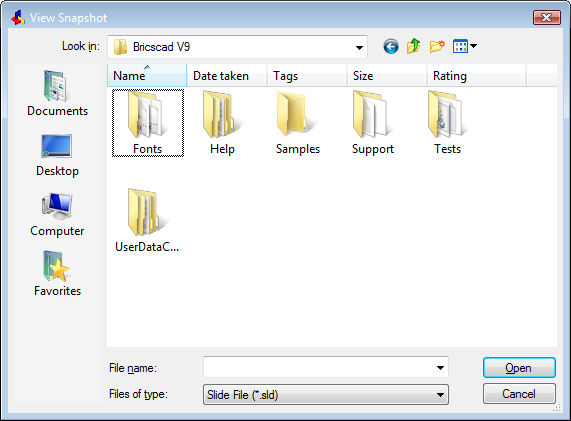

Displays a dialog box:

Choose a file, and then click Open.

To remove the slide from the viewport, use the Redraw command.

Command Options

Option	Description
File name	Specifies the name of the slide file.
Files of type	Selects the file type of the slide file: Slide File (.sld) is the proprietary graphics format used by AutoCAD for slides. Enhanced Metafile (.emf) is the enhanced WMF format. Windows Metafile (*.wmf) is the hybrid raster-vector format developed by Microsoft.
Open	Displays the slide in the current viewport. Use the Redraw command to remove the slide.

Related Commands

MSlide - saves drawings in SLD, EMF, and WMF formats.

Redraw - removes the slide from the viewport.
