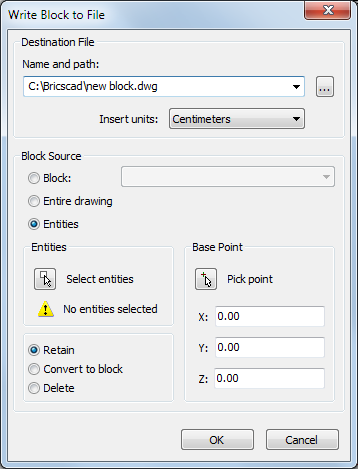

WBlock

Name and Path

Click the Browse button ().

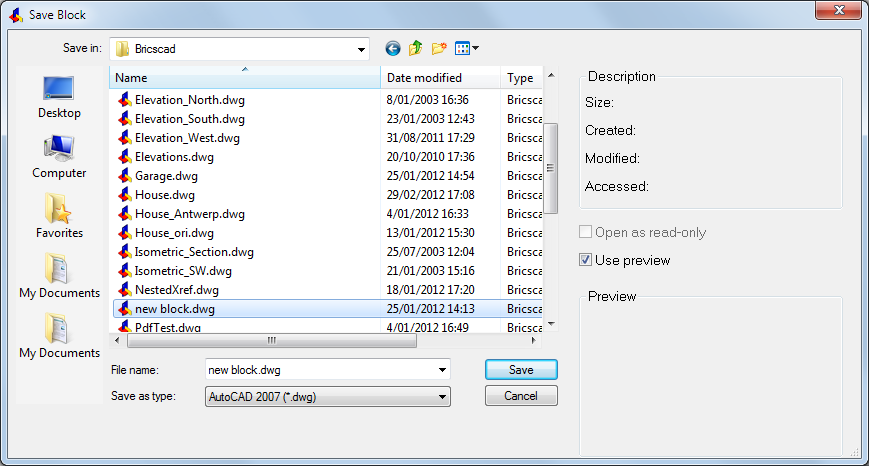

A dialog box displays:

• Save in - Select a folder

• File name - Specifies the name of the file.

• Save as type - Specifies the file type. Choose from DWG or DXF formats in the list.

• Use Preview - Toggles inclusion of the preview image in the file:

• • Yes - includes a bitmap preview image.

  • No - does not include the image.

Insert Units

Specifies the INSUNITS (insertion units) system variable of the drawing.

Block Source

Selects the geometry to save to a new file.

Block

Click the list button, then choose a block in the list

Entire drawing

Selects all geometry in the drawing.

Entities

Lets you select the entities to be saved to a new drawing.
Click the Select button ().
You are prompted to select entities.
Press Enter or right click to stop selecting entities.

• Retain - keeps the selected entities as is.

• Convert to block - converts the selected entities to a block in the current drawing.

• Delete - deletes the selected entities in the current drawing, thus moving the selection to a new drawing.

Base Point

Specifies the origin point of the new drawing.
Do one of the following

• Click the Select button ().
  You are prompted to select the base point in the drawing.

• Type the coordinates of the base point in the X, Y and Z fields.
