Works with Bricscad (Windows) Classic, Pro and Platinum, Bricscad (Linux) Classic and Pro
Loads SHX compiled shape files into the current drawing.
Accessing the Command
command bar: load
: load

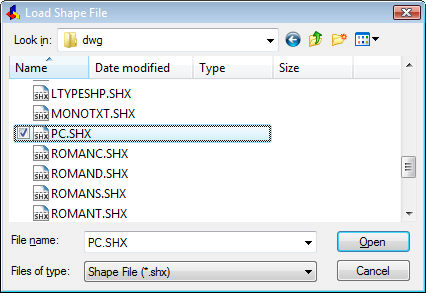

Displays a dialog box:
Choose an SHX file, and then click Open.
SHX files are compiled SHP shape files, which are used to define fonts and shapes. This command works only with shape SHX files, not font SHX files. Shapes were an early version of blocks. They were highly efficient but difficult to create. This command remains in Bricscad largely for compatibility reasons.
Shapes are placed with the Shape command.
Command Options
No options.
Related Commands
Shape - inserts shapes into drawings.
Insert - inserts blocks into drawings.
