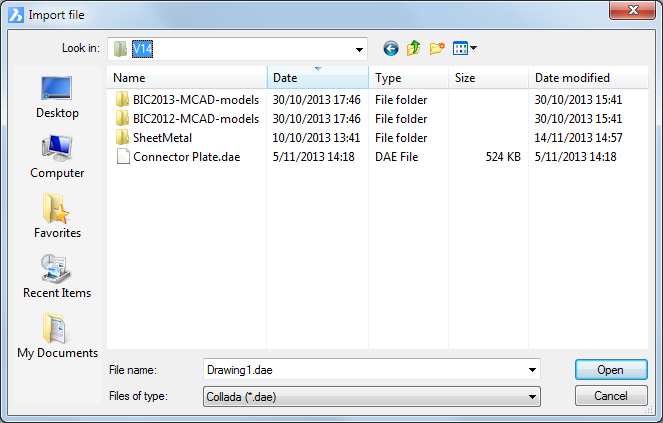

Import

Option

Description

File name

Specifies the name of the file.

Files of type

Specifies the file type:

• DWG - drawing files.

• DXF - drawing interchange files.

• DWT - template files.

• DAE - collada files

Open

Inserts the geometry in the current drawing.

Format

Extension

Description

Standard for Exchange of Product data

STE, STP, STEP

STEP (Standard for the Exchange of Product Data) is an ISO standard exchange format used for representing three-dimensional data in a format that can be recognized by multiple programs.

Initial Graphics Exchange Specification

IGS, IGES

A file format which defines a vendor neutral data format that allows the digital exchange of information among Computer-aided design (CAD) systems.

 Inventor

IAM, IPT

Autodesk Inventor, developed by U.S.-based software company Autodesk, is 3D mechanical CAD design software for creating 3D digital prototypes used in the design, visualization and simulation of products.

Inventor uses specific file formats for parts (IPT) and assemblies (IAM).

CATIA V4

model

CATIA (Computer Aided Three-dimensional Interactive Application) is a multi-platform CAD/CAM/CAE commercial software suite developed by the French company Dassault Systèmes.

CATIA V5

CATPart, CATProduct

PARASOLID

XMT_TXT, XMT_BIN

X_T, X_B

Parasolid is a geometric modeling kernel originally developed by ShapeData, now owned by Siemens PLM Software (formerly UGS Corp.), that can be licensed by other companies for use in their 3D computer graphics software products.

Solid Edge

PAR, PSM

Solid Edge is a 3D CAD parametric feature solid modeling software. which  provides solid modeling, assembly modelling and drafting functionality.

NX

PRT

PRT is a part or model file format used by PTC Pro/Engineer, which is a CAD program that creates design parts and assembly processes.

Creo Elements
Pro Engineer

ASM, PRT

Parametric, integrated 3D CAD/CAM/CAE solution created by Parametric Technology Corporation (PTC).

Solidworks

SLDASM, SLDPRT

SolidWorks is a 3D mechanical CAD program that runs on Microsoft Windows and is being developed by Dassault Systèmes.

SLDPRT: part file, SLDASM:  assembly file

VDA-FS

VDA

VDA-FS is a CAD data exchange format for the transfer of surface models from one CAD system to another. Its name is an abbreviation of "Verband der Automobilindustrie - Flächenschnittstelle", which translates to the "automotive industry association - surface data interface". Standard was specified by the German organization VDA.
