BimExport

Platinum Platinum Platinum

Exports the model to a .ifc file containing all 3D geometrical and BIM related data.

Accessing the Command

command bar:  bimexport

menu bar:  BIM | Export to IFC

toolbar:  BIM |

: bimexport

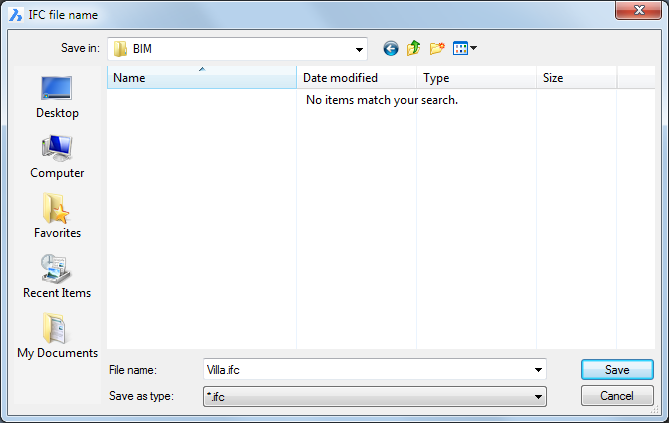

Displays a file dialog box:

Do the following:

• Select a folder

• Either accept the <drawing_name>.ifc default name or type a new name in the File name field.

• Click the Save button.

Command Options

No Options.

Related Commands

BimClassify - classifies an entity as a Building Element and get a name and an internal guid (a globally unique identifier).
