ViewSectionStyle

Allows to specify the visual format of section views and section lines.

Accessing the Command

command bar: viewsectionstyle

menu bar: View| Generated Views | Section Style

toolbar: Generated Views |

: viewsectionstyle

Displays a dialog box:

Command Options

Option	Description
Identifier	Sets the properties of the section identifier:

Arrows	Sets the properties of the section arrows:

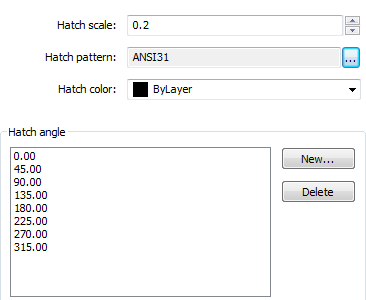

Hatch	Sets the properties of the section hatching: Select a hatch angle in the list. To add a new hatch angle, click the New... button. A dialog box displays: Type a value in the Angle field. Do one of the following: Click the OK button to add the angle and close the dialog. Click the Apply button to add the angle and keep the dialog open to add more angles. Click the Cancel button to close the dialog without adding an angle. To remove an angle, select the angle in the list, then click the Delete button.

Cutting Plane	Sets the properties of the cutting plane line:

Related Commands

ViewBase - generates associative orthographic and standard isometric views of a 3D solid model in a paper space layout.

ViewDetail - creates a detail view of a portion of a standard generated drawing at a larger scale.

ViewDetailStyle - allows to specify the visual format of detail views and detail symbols.

ViewSection - creates a cross section view based on a standard drawing view generated by the ViewBase command in a paper space layout.
