BimInsert

BIM BIM BIM

Inserts a window or door in a solid. Inserts a copy of a window or door in a solid.

Make sure Dynamic UCS (DUCS) and Dynamic Dimensions (DYN) are active.

Accessing the Command

command bar: biminsert

menu bar: BIM| BIM Insert

toolbar: BIM |

Qaud: BIM |

: biminisert

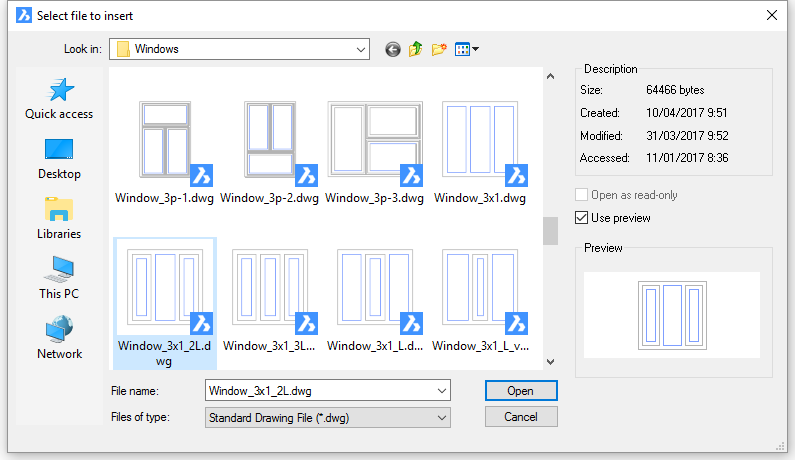

Displays a File dialog box:

Select a window or door to insert, then double click or click the Open button.

Select insertion point or [Edit inserted entity] : (Move the cursor over a solid; the face under the cursor highlights: The UCS aligns dynamically with the selected face; if the edge by which the cursor enters the solid is horizontal or vertical, the X-axis of the UCS is horizontal, otherwise the X-axis is aligned with the edge; the Z-axis is perpendicular to the face of the solid. Specify point to insert.)

Hit the Ctrl-key to switch between Select insertion point and Edit inserted entity mode.

Command Options

Option

Description

Select insertion point

Allows to specify the insertion point.

Hit the Ctrl-key to switch to Edit inserted entity mode.

From the middle of each edge of the placement rectangle dynamic dimensions display to the nearest parallel edge on the face of the solid.
Press the TAB key to cycle the fields.
Type a value in the dynamic dimension fields, then press the TAB key, to lock the field which then turns red.
Only one of two parallel dimensions can be locked. If a dimension value is entered, and the other, parallel dimension was already locked, it will be unlocked..
Press Enter or click to insert the selected block.

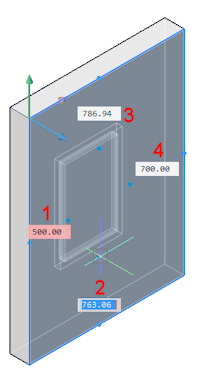

1. Locked field
2. Current field
3 and 4. Unlocked fields

Edit inserted entity

Allows to specify the width and height of the placement rectangle of the insert.

Prompts you: Edit [Height/Width/Done] <Height>:

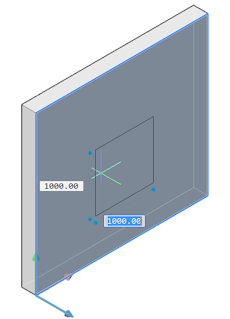

Two dynamic dimension fields show the current width and height of the placement rectangle.

Type a value in the current dynamic dimension field, then press the TAB key to switch to the other field.

Hit the Ctrl-key to switch to Select Insertion Point mode.

Procedures

Inserting windows or doors

Inserting a copy of an insert

Related Commands

BimWindowUpdate - updates the opening made by a window or door in a solid, in case the definition changed in such way that the opening was not correctly updated automatically.
