Opens the Buildings & Stories manager. This explorer allows to create and edit site, buildings and stories.
Accessing the Command
command bar: bimspatiallocations
menu bar: BIM | Spatial Locations
toolbar: BIM |
: bimspatiallocations

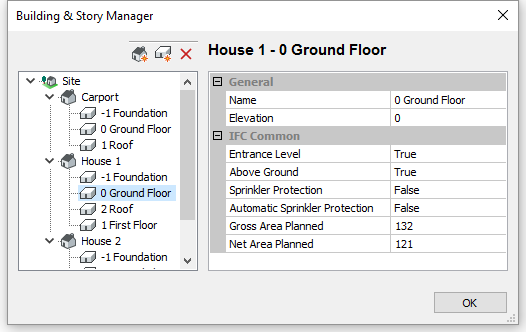

Displays a dialog box:
Click the Close (X) button or the OK button to close the dialog box.
Command Options
|
Icon |
Option |
Description |
|
|
New Building |

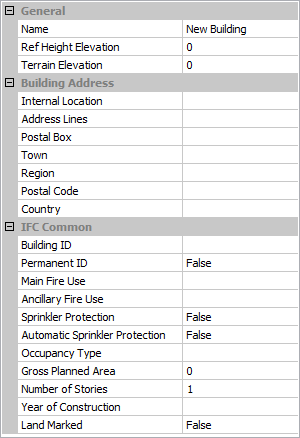

Adds a new building to the model. Fill out the properties grid:
|
|
|
New Story |

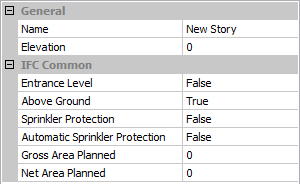

Adds a new story in the selected building. Fill out the properties grid:
|
|
|
Delete |

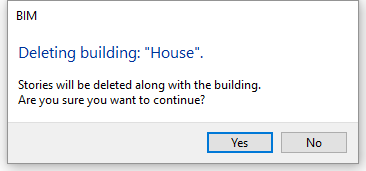

Deletes the selected building or story. An alert box displays:
Click the Yes button to delete the selected item. |
Procedures
Assigning a building and story to a building element
To examine the model in the Structure panel
Related Commands
BimClassify - classifies an entity as a Building Element and get a name and an internal GUID (= globally unique identifier).
