BIM BIM BIM BIM
Classifies an entity as a Building Element and get a name and an internal GUID (= globally unique identifier).
Accessing the Command
command bar: bimclassify
menu bar: BIM | Classify As Building Element
toolbar: BIM |
Quad: BIM Classification |
: bimclassify
Prompts you in the command bar:
Classify entities as: Wall/Column/Slab/Beam/wIndow/Door/buildingElement/Other/Auto/Unclassify: (Select an option.)
Select entities to classify <Drawing>: (Select ore or more entities or press Enter to classify the drawing as a building element.)
Command Options
|
Option |
Icon |
Description |
|
|
Classifies the selection as wall elements. This option is applicable to any 3D Solid. Attaching a Wall composition to a solid automatically classifies the solid as a wall. |
|
|
|
Classifies the selection as column elements. This option is applicable to any 3D Solid. |
|
|
|
Classifies the selection as slab elements. This option is applicable to any 3D Solid. Attaching a Slab or Roof composition to a solid automatically classifies the solid as a slab. |
|
|
|
Classifies the selection as beam elements. This option is applicable to any 3D Solid. |
|
|
|
Classifies the selection as windows. This option is applicable to any block reference |
|
|
|
Classifies the selection as doors. This option is applicable to any block reference. |
|
|
|
Classifies the selection as unspecified building elements. |
|
|
|
Allows to classify the selection as a building element. Choose the entity type in the list or type the Bim data type number. The options are: 1. Covering 2. CurtainWall 3. FlowTerminal 4. Footing 5. FurnishingElement 6. Member 7. Pile 8. Railing 9. Ramp 10. RampFlight 11. Roof 12. Site 13. Stair 14. StairFlight |
|
|
|
Automatically classifies a set of entities. Automatically classified elements are walls, slabs, windows and doors. |
|
|
|
Removes all BIM data from the selected entities. At any time, any dwg entity can be classified as a Building Element and get a name and an internal GUID (= globally unique identifier). |
|
|
|
||
|
|

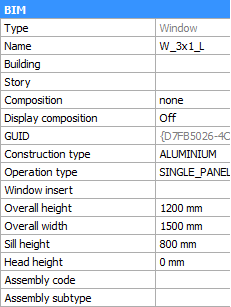

Classifies the entire drawing as a building element, e.g. a window, a door or a curtain wall. When the entire drawing is classified a number of appropriate properties can be defined in the Properties Bar. The following properties are available for windows:
|
|
Related Commands
BimAttachComposition - attaches a BIM composition to solids.
BimSpatialLocations - opens the Buildings & Stories manager. This explorer allows to create and edit site, buildings and stories.
Export - exports drawings in a variety of vector and raster formats, including *.ifc
