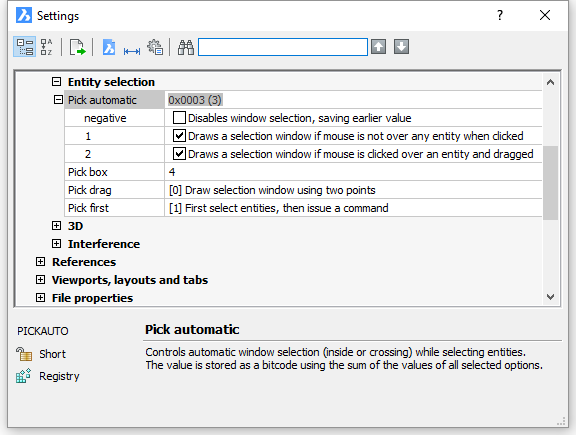

DdSelect

Pick Automatic

Toggles whether BricsCAD automatically creates window or crossing selections at the 'Select entities' prompt:

• negative - Disables window selection when no command is active. Requires a single pick point to select an entity, or the entry of a selection mode option when a command prompts to select entities.

• 1 - Enables window selection if the mouse is not over an entity when you click.

• 2 - Enables window selection if the mouse is clicked when over an entity and dragged. This option is recommended when working in a rendered 3D model.

Pick Box

Specifies the size of the pick box; range is 0 to 50 pixels; default = 3 pixels.

Pick Drag

Determines how selection windows are created:

• 0 - Draw selection window using two points; default.

• 1 - Draw selection window using dragging.

Pick First

Determines how entities are selected:

• 0 - First issue a command, then select entities.

• 1 - First select entities, then issue a command; default.
