SmImprint

Sheet Metal Sheet Metal Sheet Metal

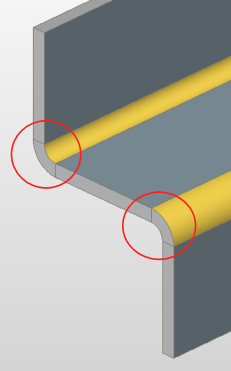

Splits thickness faces of a sheet metal part by imprinted edges, according to adjacent flanges and bends.

Accessing the Command

command bar:  smimprint

menu bar:  Sheet Metal | Split thickness face

toolbar:  Sheet Metal |

: smimprint

Prompts you in the command bar:

Select a thickness face: (Select a thickness face)

Entities in set: 1

Select a thickness face: (Select more thickness faces or press Enter.)

xx edge(s) were imprinted.

Command Options

No options.

Procedures

To split a thickness face.

Related Commands

SmJunctionCreate - converts hard edges (sharp edges between flange faces) and bends into junctions.

SmJunctionSwitch - allows changing a symmetrical junction feature to one with overlapping faces.
