WmfOut

Works with Classic, Pro

Exports drawings in WMF, EMF, or SLD format (short for "windows metafile output").

Accessing the Command

command bar:  wmfout

alias:  wo



: wmfout

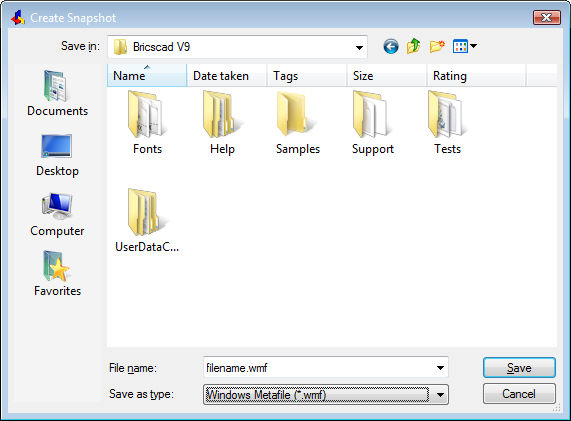

Displays a dialog box:

Enter a file name, choose a file type, and then click Save.



WMF, EMF, and SLD files can be viewed with the VSlide command.

Command Options

Option

Description

File name

Specifies the name of the slide (snapshot).

Save as type

Specifies the file format:

  • SLD - compatible with AutoCAD.

  • EMF - enhanced WMF format.

  • WMF - Windows meta format, a hybrid of vector and raster formats.

Save

Saves the file.

Related Commands

BmpOut - exports drawings in BMP format.

Export - exports drawings in BMP, DWF, DXF, DWT, PDF, WMF, EMF, SLD, and older DWG formats.

MSlide - exports drawings in WMF, EMF, and SLD formats.
