Layer States

Layer states let you save and restore configurations of layer properties and states. You might want a layer to display in blue sometimes and green at other times, or you need some layers to be off or frozen or locked when editing a specific part of a drawing. After spending a lot of time adjusting all layer settings you can use layer states to save your settings. You can save multiple layer states in a each drawing. Layer states can be copied between drawings and you can save a layer state to an external file, which can then be imported in another drawing.

To easily create a layer state, the Layer Utility commands might be useful.

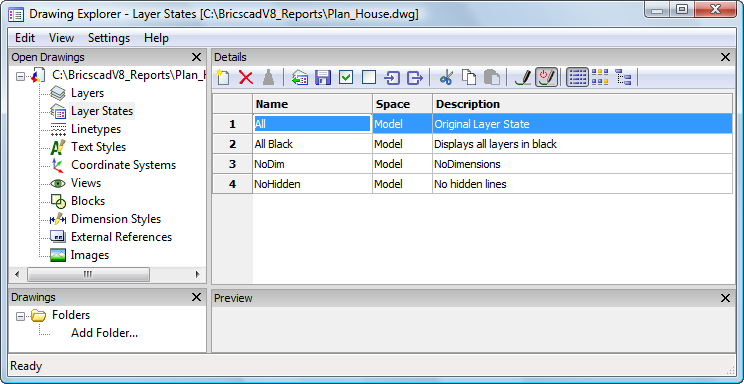

Opening the Layer States Explorer

1. In the Settings menu choose Layer States... .

2. (option) Do one of the following:

3. Click the Detail View button ().




4. Click the Icon View button ().



5. Click the Tree View button ().



To save a layer state

1. Open the Layer States explorer.

2. Click the New button. ().
   A new layer state is created.

3. Type a name for the layer state, replacing the NewLayerState1 default name.

4. (option) When in Detail View or Tree View, type a description in the Description field.

5. (option) Click the Tree View button () to select the layer properties to restore.

6. Expand the Layer Properties to restore list.



7. (option) Click the All Properties Off button (), then select the properties to restore.

8. (option) Click the All Properties On button () to select all properties.

6. Click the check box to select a layer property, click again to remove the selection.

To edit a layer state

1. Open the Layer States explorer.

2. (option) Click the Overwrite button () to overwrite the layer state with the current layer settings.

3. If necessary, click the Tree View button ().

4. Click the expand button of the layer state.

5. (option) Rename the layer state.

6. (option) Edit the layer state description.

7. (option) Expand the Layer Properties to restore list.
   Click the check box to select a layer property, click again to remove the selection.

To restore a layer state

1. Open the Layer States explorer.

2. Select the layer state you want to restore.

3. Do one of the following:

4. Click the Restore button ().

5. Right click, then choose Restore in the context menu.

4. Click the Regen button ()

To copy layer states to another drawing

1. Open both, the source and the target drawing.

2. Make the source drawing the current drawing.

3. Open the Layer States explorer.

4. If the layer states display in Tree View, choose either Detail View () or Icon View ().

5. Do one of the following

6. Select the layer state you want to copy.

7. Press and hold the Ctrl key to select multiple layer states.

6. With the cursor on a selected layer state, press and hold the left mouse key, then drag the selection to the target drawing in the Open Drawings section of the Drawing Explorer dialog window.

7. When on the target drawing, release the left mouse button.
   The selected layer states are copied to the target drawing.

To export a layer state

1. Open the Layer States explorer.

2. Select the layer state.

3. Click the Export button ().
   The Export Layer States dialog opens.

4. In the File Name field, type a name for the layer state.

5. Choose a folder to save the layer state in.

6. Click the Save button.

To import a layer state

1. Open the Layer States explorer.

2. Click the Import button ().
   The Import Layer States dialog opens.

3. Browse to the folder where you have saved the layer state file.

4. Select the layer state.

5. Click the Open button.
   The layer state is imported.
