Works with Classic, Pro, Linux
Converts drawings to from CTB (color-based plotting) to STB (plot styles).
Accessing the Command
command bar: convertpstyles
: convertpstyles

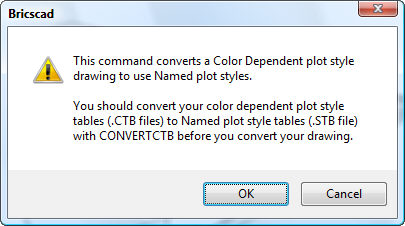

Displays a dialog box:
Click OK.

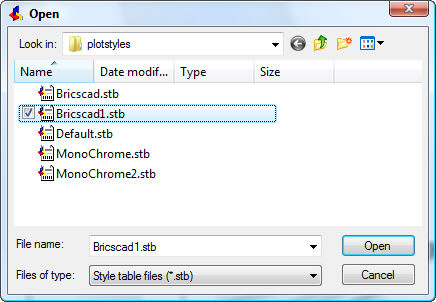

The next dialog box appears:
Choose an STB file, and then click Open.
Bricscad reports in the command bar:
Drawing converted from Color Dependent mode to Named plot style mode.
Command Options
No options.
Related Commands
ConvertCtb - converts CTB plot style files to STB files.
Layer - assigns plot styles to layers.
PageSetup - assigns plot style to drawings.
PlotStyle - sets the current plot style.
Print - plots drawings with plot styles.
Properties - changes plot styles assigned to entities.
StylesManager - creates and attaches plot styles to drawings.
