Commands: XCSOLIDS, XCUCS, XCVIEW
The X-Central command Center is a uniquely powerful interface to all of the capabilities that you use most often when creating and editing solid models. The logical organization and graphical cues make it easy for beginner and expert alike to quickly access the capabilities needed for the task at hand.
The X-Central is organized into three pages, in a tabbed dialog: X-Solids, UCS and View. You can access any of these pages directly from the X-Central toolbar, the X-Solids menu or the command bar.
Do one of the following:
Click the XCSolids (
), XCUCS (
) or XCView (
) icon on the
X-Central toolbar.
Choose Solids..., UCS... or View... in the X-Solids > X-Central menu.
Type xcsolids, xcucs or xcview in the command bar, then press Enter.
On the Solids tab page you can find all commands to create and manipulate X-solids along with the utilities.
The UCS tab page allows you to restore various UCS's, including all saved UCS's, a series of standard UCS's and a list of all the UCS's used in the current session. You can scroll or jump back and forth through the UCS list. It provides all options to create a new UCS and access to all UCS related system variables.

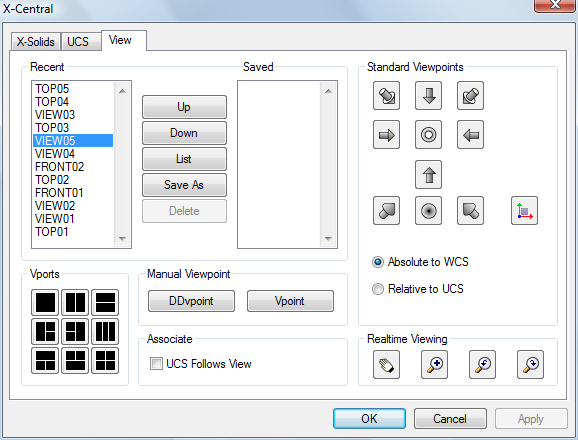

The View tab allows you to restore various views, including a variety of predefined views, saved views and, on a per-viewport basis, all the views used in the current session. You can scroll or jump back and forth through the view list. It provides direct access to view manipulation commands such as PAN, ZOOM, DDVPOINT, VPOINT and VPORTS.
