Fillet

Works with Classic, Pro

Fillets intersections; joins intersecting lines with an arc of any suitable radius.

Accessing the Command

command bar: fillet

alias: f

menu bar: Modify | Fillet

toolbar: Modify | Chamfer/Fillet |

: fillet

Prompts you in the command bar:

Fillet (radius=0.5000): Settings/Polyline/<Select first entity>: (Choose an entity, enter an option, or enter R to change the radius.)

Select second entity: (Choose another entity.)

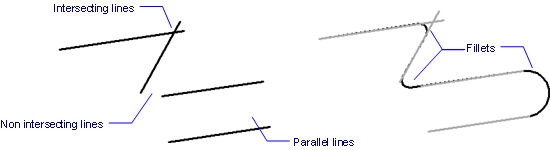

Fillets can be applied to intersecting, non-intersecting, and parallel lines.

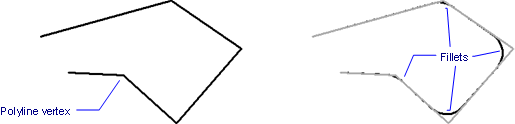

Fillets are applied to all vertices of a polyline.

Command Options

Option	Description
Select first entity	Choose an entity, or enter R to change the radius. The following entities can be filleted: Lines, including parallel lines. All vertices of a single 2D polyline; two polylines cannot be filleted. Rays, including parallel rays. Infinite lines, including parallel infinite lines. Arcs. Circles.
Select second entity	Choose the second entity.
Settings	Displays the Chamfer/Fillet section of the Settings dialog box: Fillet radius - sets the radius of the fillet arc. Trim mode - toggles whether the entities are trimmed back to the fillet radius.
Polyline	Fillets the vertices of a polyline; prompts you: Select 2D polyline to fillet - choose a single polyline. You cannot control which vertices are filleted; all are.

Related Commands

Break - cuts parts out of entities.

Chamfer - chamfers intersections.

Settings - specifies parameters for fillets.

SolidEdit - edits faces, edges, and bodies of solid models.

Trim - trims entities where they cross other entities.
