Works with Bricscad (Windows) Classic, Pro and Platinum, Bricscad (Linux) Classic and Pro
Converts older CBT (color-based plot tables) files to newer STB (style-based plot tables) files.
Accessing the Command
command bar: convertctb
: convertctb
Displays a dialog box:
Choose a CTB file, and then click Open.
Displays the next dialog box:
Enter a name for the STB file, and then click Save.

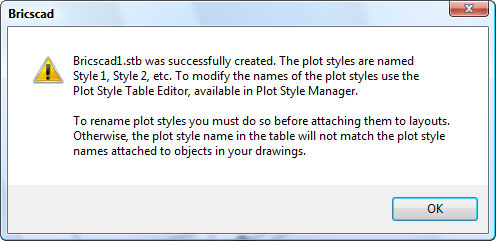

Displays the next dialog box:
Click OK.
Command Options
No options.
Related Commands
ConvertPStyles - converts drawings from CTB to STB plot styles.
Layer - assigns plot styles to layers.
PageSetup - assigns plot style to drawings.
PlotStyle - sets the current plot style.
Print - plots drawings with plot styles.
Properties - changes plot styles assigned to entities.
StylesManager - creates and attaches plot styles to drawings.
