DrawOrderByLayer

Works with Bricscad (Windows) Classic, Pro and Platinum, Bricscad (Linux) Classic and Pro

Controls the draw order of overlapping objects through layer names.

Accessing the Command

command bar:  draworderbylayer

: draworderbylayer

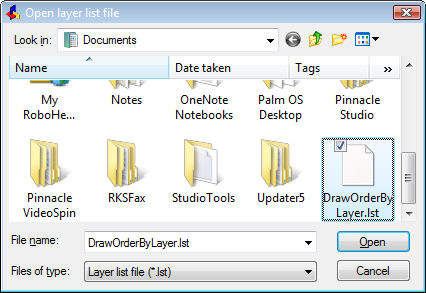

Displays a dialog box:

Choose a LST layer list file, and then click Open.

The file must be created by user. The LST file is an ASCII text file that contains a list of layer names in the following format:

LayerName1

LayerName2

...

LayerNameN

Wildcard characters are supported in layer names.

The DrawOrderByLayer command places entities on the layer 'LayerName2' in front of entities on the layer 'LayerName1', the layer 'LayerName3' in front of the 'LayerName2' and so on. Missing layers are skipped.

Command Options

Related Commands

DrawOrder - sets draw order of overlapping objects through the command bar.

BHatch and Hatch - set the draw order of hatch patterns relative to other entities through a dialog box.

-BHatch and -Hatch - set the draw order of hatch patterns relative to other entities through the command bar.
