XCsolids

Works with BricsCAD (Windows) Platinum

Displays the X-Central-Solids dialog box.

Accessing the Command

command bar:  xcsolids

menu bar:  Model | X-Solids (History Based) | XCentral | Solids

toolbar:  X-Solids |



: xcsolids

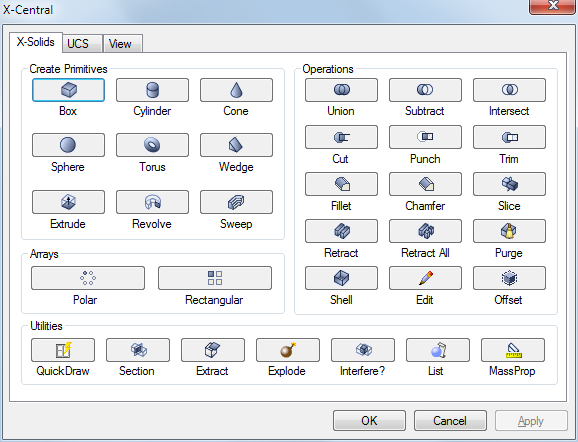

Displays a dialog box:

t



Click a button to launch the command.

Related Commands

XBox - creates a three-dimensional X-Solid box.

XCone - creates a cone as a 3D X-Solid.

XCylinder - creates a cylinder as a 3D X-Solid.

XExtrude - extrudes 2D entities to X-solids.

XRevolve - revolves 2D closed entities to turn them into 3D X-Solids.

XSphere - creates a sphere as a 3D X-Solid.

XSweep - Extrudes 2D entities along a path to X-solids.

XTorus - creates a torus as a 3D X-Solid.

XWedge - creates a wedge as a 3D X-Solid.



XArrayR - Creates a rectangular array of X-Solids and Acis solids.

XArrayR - Creates a rectangular array of X-Solids and Acis solids.



Interfere - creates 3D volumes of intersecting 3D solid models.

Intersect - removes volumes not in common between two solid models.

XPunch - cuts ACIS solids and X-Solids using 2D profiles as cutting tools.

Slice - cuts 3D solids into two parts.

Subtract - removes one solid model from a second.

Union - performs Boolean union operations on 3D solids and 2D regions; adds one to another to form a single entity.

XSlice - Cuts an ACIS solid or an X-solid with a plane; the result is a 3D solid cut in two. You can choose whether to keep both parts or just one.

XSubtract - Performs Boolean subtraction operations on Acis solids and X-Solids; removes one from the other.

XUnion - Performs Boolean union operations on Acis solids and X-Solids; adds one to another to form a single entity.

XCut - Trims or cuts ACIS solids and X-Solids using 2D profiles as cutting tools.

XTrim - Trims ACIS solids and X-Solids using 2D profiles as cutting tools.
