Matches the current model space perspective view with a background image by selecting 3 or more matching point pairs.
The command applies to perspective views only.
To toggle the Perspective property of the current view do one of the following:
Click the Perspective toolbutton
(
) in the View
toolbar.
Choose Perspective in the View menu.
Click the Perspective toolbutton
() in the View
panel of the View Ribbon tab.
Accessing the Command
command bar: matchperspective
menu bar: View | Match Perspective
toolbar: View |
: matchperspective
Prompts you in the command bar:
Enter Model Point: (Specify a point in the 3D model.)
Enter Image Point or [Undo]: (Click the corresponding point in the image.)
Enter Model Point or [Undo]: (Specify a point in the 3D model.)
Enter Image Point or [Undo]: (Click the corresponding point in the image.)
Enter Model Point or [Undo]: (Specify a point in the 3D model.)
Enter Image Point or [Undo]: (Click the corresponding point in the image.)
Enter Model Point or [Undo] <Match>: (Specify more point pairs or press Enter to match the view.)

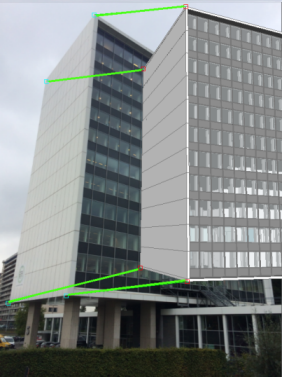

The model and image point pairs are marked, and connected by green lines.

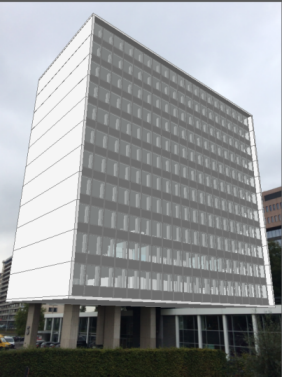

The perspective matches the background image.
Optionally execute the View command and save the view.
Command Options
|
Option |
Description |
|
Undo |
Removes the previous point pair. |
|
Match |
Matches the model space view with the background image. |
Related Commands
Background - sets the model space background for the current viewport and saved views.
Camera - Creates perspective views.
-View - Creates and sets named views through the command bar.
View - Creates and sets named views through the Drawing Explorer.
