MaterialMap

Select faces or entities

Use any of the selection procedures to select entities. See the Select command.

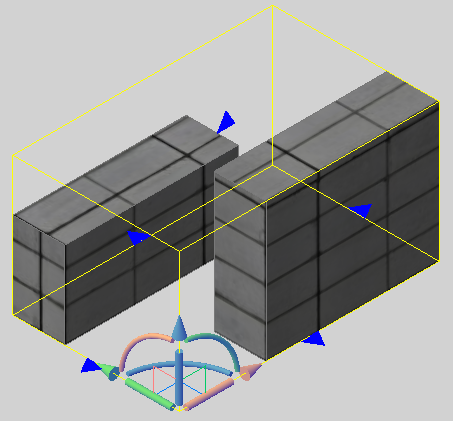

All selected entities are included in the yellow bounding box of the manipulator.

To scale the mapping image:
Drag one of the blue arrow grips to scale the texture in the X-, Y- or Z direction.

To move the mapping image:
Do one of the following:

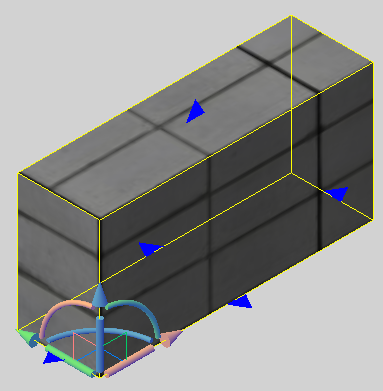

• Place the cursor over the one of the tripod axes and click when a second arrowhead displays on the selected axis, then move the cursor to adjust the position of the pattern in the selected direction.



  The box tripod has three axes X (green), Y (red) and Z (blue); in the image above the Y-axis is selected.


• Place the cursor over a plane quarter (XZ, YZ or XY) and click when the quarter highlights and a second arrowhead displays on the defining axes of the plane, then move the cursor to adjust the position of the pattern in the selected plane .



  The box tripod has three plane handles: XY, XZ and YZ (left); in the image above the YZ-plane handle is selected.

To rotate the mapping image:
Do the following:

• Move the cursor over one of the rotation handles and click when the handle expands.
  The rotation axis in the color of the selected handle displays.
  The material map rotates dynamically around the selected axis.



• Click a point to define the rotation angle.

Box

Wraps the texture around the six faces of a the bounding box of the selected entity or entities.

Prompts you:

Edit the mapping or [reseT/sWitch mapping mode] <Accept current mapping>: Press Enter to accept the mapping or choose an option.

• Reset: Restores the default mapping; reverses all previously applied adjustments.

• Switch mapping mode: allows to apply a different mapping mode.
  Prompts you:
  Select an option [Box/Planar/Spherical/Cylindrical/Copy mapping to (Y)/Reset mapping)] <Box>: Select an option.

Planar

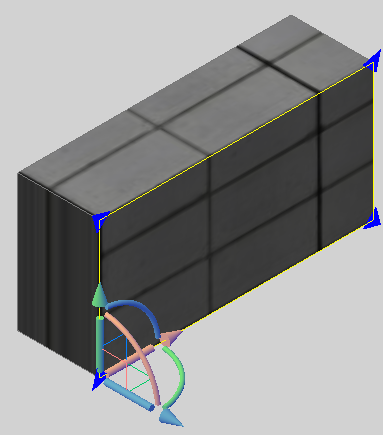

Aligns the texture to a single face.

To select a face of a 3D solid:

- Set SELECTIONPREVIEW = 2 or 3 or check the Select Faces option of the SELECTIONMODES system variable.

- Place the cursor over the 3D solid face and click when the face highlights. Repeatedly hit the TAB key to select an obscured face

Prompts you:

Edit the mapping or [reseT/sWitch mapping mode] <Accept current mapping>: Press Enter to accept the mapping or choose an option.

• Reset: Restores the default mapping; reverses all previously applied adjustments.

• Switch mapping mode: allows to apply a different mapping mode.
  Prompts you:
  Select an option [Box/Planar/Spherical/Cylindrical/Copy mapping to (Y)/Reset mapping)] <Box>: Select an option.

Spherical

Aligns the texture to a spherical shape. The top and bottom edges of the image are compressed to a point at the north and south poles of the sphere.

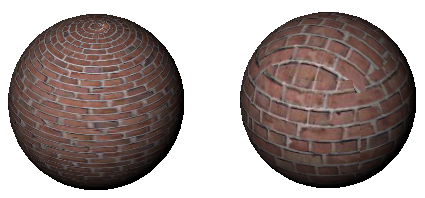

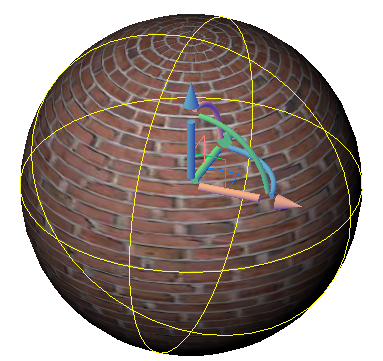

Spherical mapping of a brick pattern (left) compared to box mapping (right).

Prompts you:

Edit the mapping or [reseT/sWitch mapping mode] <Accept current mapping>: Press Enter to accept the mapping or choose an option.

• Reset: Restores the default mapping; reverses all previously applied adjustments.

• Switch mapping mode: allows to apply a different mapping mode.
  Prompts you:
  Select an option [Box/Planar/Spherical/Cylindrical/Copy mapping to (Y)/Reset mapping)] <Box>: Select an option.

Cylindrical

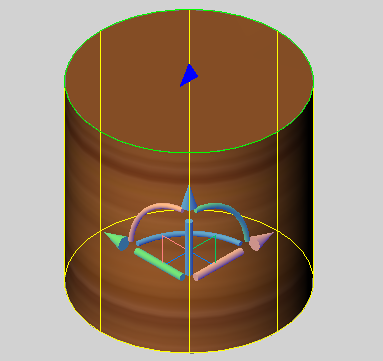

Aligns the texture to a cylinder shape. The vertical edges of the image are wrapped together. The height of the image is scaled along the axis of the cylindrical shape.

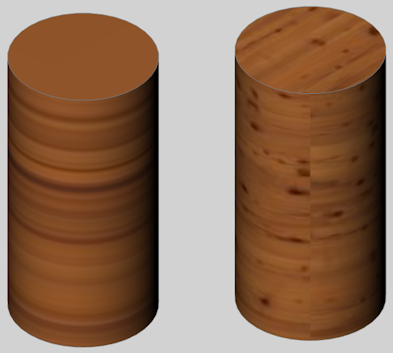

Cylindrical mapping of a wood pattern (left) compared to a box mapping (right).

Prompts you:

Edit the mapping or [reseT/sWitch mapping mode] <Accept current mapping>: Press Enter to accept the mapping or choose an option.

• Reset: Restores the default mapping; reverses all previously applied adjustments.

• Switch mapping mode: allows to apply a different mapping mode.
  Prompts you:
  Select an option [Box/Planar/Spherical/Cylindrical/Copy mapping to (Y)/Reset mapping)] <Box>: Select an option.

Copy mapping to

Applies mapping from the source entity or face to the selected entities, thus duplicating the mapping, including any adjustments, to other entities. All entities share the same mapping origin, axes and scale. As a result the texture image is extended seamlessly from one entity to another .

Prompts you:

Select face or entity: Select the source entity.

Select the entities to copy the mapping to:

Select faces or entities: Select the target entity.

Entities in set: 1

Select faces or entities: Select more target entities or press Enter.

Reset mapping

Restores the default mapping; reverses all previously applied adjustments.
