Allows to specify the visual format of detail views and detail symbols.
Accessing the Command
command bar: viewdetailstyle
menu bar: View | Drawing Views | Detail Style
toolbar: Drawing Views |
ribbon: Annotate | Drawing Views|
: viewdetailstyle

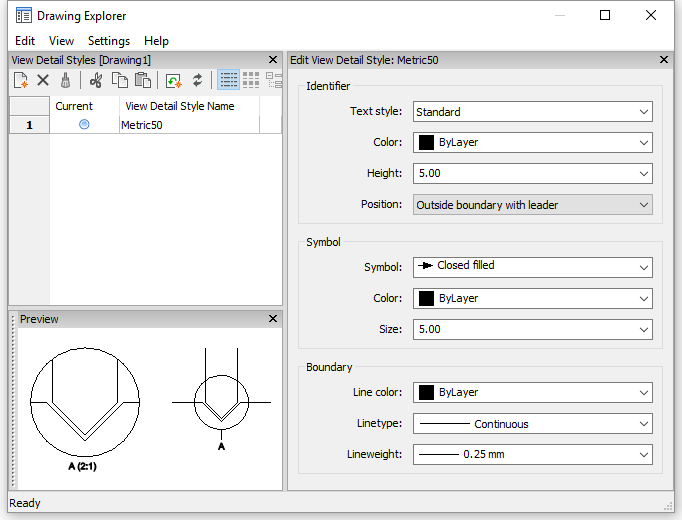

Displays the View Detail Styles section of the Drawing Explorer dialog box:
Command Options
|
Option |
Description |
|
|
Creates a new view detail style as a copy of the currently selected style. |
|
|
|
|

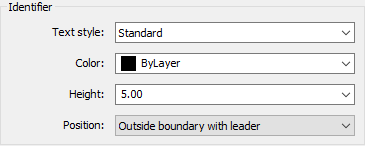

Identifier |
Defines the properties of the view detail identifier.
|
|

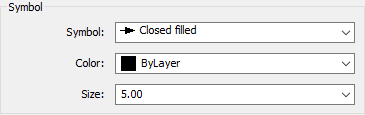

Symbol |
Defines the properties of the symbol.
|
|

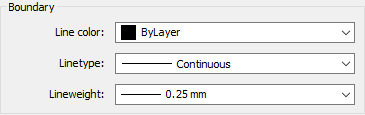

Boundary
|
Defines the properties of the detail viewport boundary.
|
Related Commands
ViewBase - generates associative orthographic and standard isometric views of a 3D solid model in a paper space layout.
ViewDetail - creates a detail view of a portion of a standard generated drawing at a larger scale.
ViewSection - creates a cross section view based on a standard drawing view generated by the ViewBase command in a paper space layout.
ViewSectionStyle - allows to specify the visual format of section views and section lines.
