Works with BricsCAD (Windows) Classic, Pro and Platinum, BricsCAD (Linux) Classic, Pro and Platinum
Assigns the properties of one entity to one or more other entities (short for "match properties").
Accessing the Command
command bar: matchprop
transparent: 'matchprop
alias: ma
: matchprop
Prompts you in the command bar:
Select entity to copy properties from: (Choose one entity.)
Active Settings: 'Color' 'Layer' 'Linetype' 'Linetype Scale' 'Lineweight' 'Thickness' 'Plot Style' 'Dimension' 'Polyline' 'Material' 'Text' 'Shadow Display' 'Hatch'
Select entities to copy properties to or [Settings]: (Choose one or more entities.)
Select entities to copy properties to or [Settings]: (Choose additional entities, or press Enter to exit the command.)
Command Options
Option |
Description |
Specifies the entity whose properties will be
copied. |
|
Specifies the entities whose properties will be changed. |
|

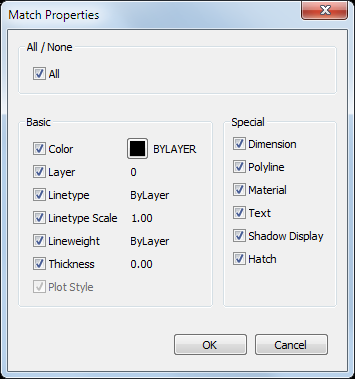

Sets the active settings.
Click the OK button when done. You are prompted: Select entities to copy properties to or [Settings]: Select entities or press S + Enter to reopen the Match Properties dialog box. |
Related Commands
Copy - copies entities.
Properties - changes properties assigned to entities.
Layer - assigns properties to layers.
Color - assigns the working color.
Linetype - assigns the working linetype.
LWeight - assigns the working lineweight.
