BimRoom

Pick a point

Creates a BimRoom entity from an enclosed space.

Prompts you:

Pick a point or [select 3d Solid]: Pick a point inside the room area. Dynamic UCS defines the bottom plane of the room. In this plane, an area enclosed by walls is found and a room mark is placed. The room mark is a block consisting of a hatch and attributes for name, number and area. The enclosing solids must be classified as walls. See BimClassify.

Select 3d Solid

Creates a BimRoom entity from an exising solid.

Prompts you:

Select 3d solid or [pick a Point]: Select a 3d solid. The room is entirely defined by the solid.

Room Properties

A Room corresponds to an IfcSpace, and has all IFC properties, apart from the BIM properties.

Room properties can be edited in the Properties Bar:

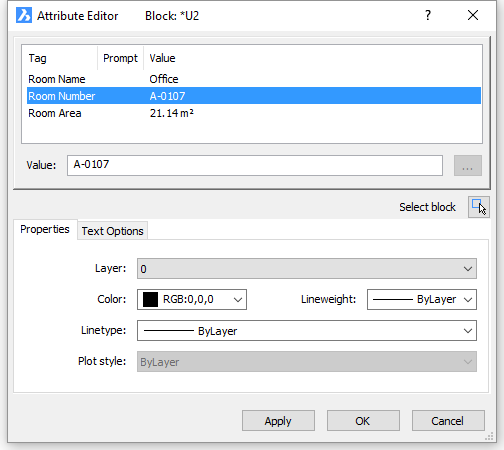

or using the EAttEdit command:
