BmInsert

Works with BricsCAD (Windows) Platinum, BricsCAD (Linux) Platinum

Inserts an existing mechanical component into the current drawing.

Accessing the Command

command bar: bminsert

menu bar: Mechanical | Insert Component

toolbar: Mechanical |



: bminsert

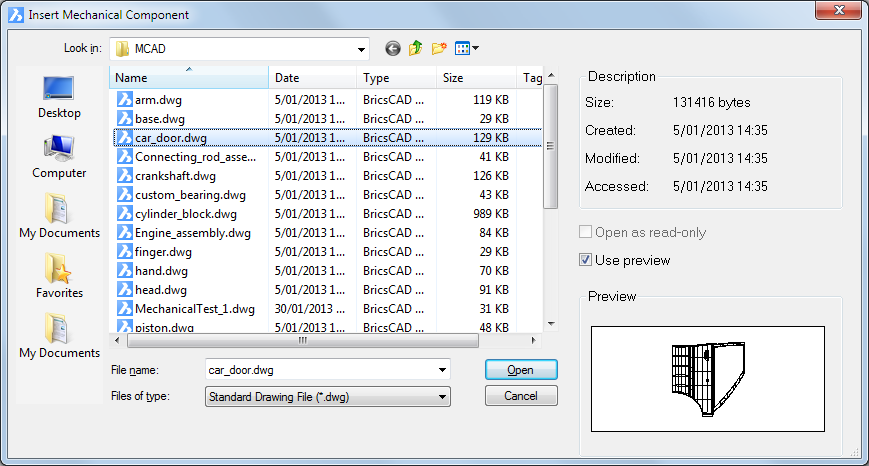

Displays a dialog box:



Select a mechanical component drawing, then double click or press the Open button.

The component is attached to the cursor with its origin point.

Dynamic dimensions display: Distance from the origin of the current coordinate system and angle from the X-axis.

Prompts you in the command bar:

Insertion point [Rotate/Base point/Name/mUltiple] <0,0,0>: (Specify the insertion point or choose an option.)

Command Options

Option

Description

Move

Type the distance from the  origin of the current coordinate system and angle from the X-axis in the entry fields. Press the TAB key to switch between the entry fields.

Press Enter to confirm the distance and angle from the X-axis.

Rotate

Allows to define the rotation angle of the component.

Prompts you:

Rotation angle [Move/Base point/Name/mUltiple]: Enter the rotation angle, then choose an option.

Base point

Allows to specify a different base point to insert the component.

Prompts you:

New base point <0,0,0>: Specify a new base point.

Name

Allows to define the insert name of the component.

Prompts you:

Component insert name <DefaultName>: Type the insert name for the component.

Multiple

Allows to insert multiple inserts of the same component.

Related Commands

BmBom - inserts a Bill of Materials (BOM) table in the current drawing.

BmBrowser - toggles the visibility of the Mechanical Browser window.

BmDissolve - dissolves a mechanical component inserted in the current drawing.

BmForm - creates a new mechanical component and inserts it into the current drawing.

BmHardware - inserts a standard hardware solid as a mechanical component in the current drawing.

BmHide - hides a mechanical component or subcomponent in the current drawing.

BmMech - converts the current drawing into a mechanical main component.

BmNew - creates a new mechanical component as a new drawing file.

BmShow - shows a previously hidden mechanical component or subcomponent in the current drawing.

BmUpdate - reloads all referenced components from external files and updates BOM tables.

BmVStyle - applies a visual style to a mechanical component.

BmXConvert - converts X-Hardware solids in the current drawing to mechanical components.
