Places center marks at the center points of circles and arcs.
Accessing the Command
command bar: DimCenter
alias: dce
menu bar: Dimension | Center Lines
toolbar: Dimensions | Circles |
: dimcenter
Prompts you in the command bar:
Select arc or circle to dimension: (Choose an arc, polyline arc segemnt, or circle.)
The DIMCEN system variable controls the length of center mark lines.

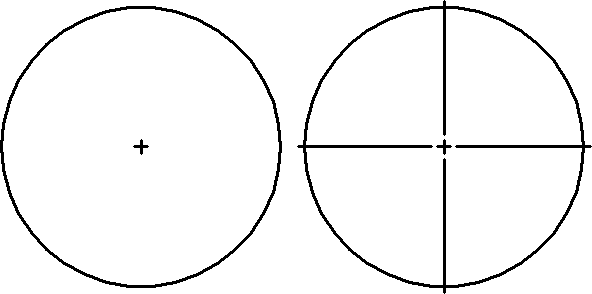

Left: DimCen = 0.09; right: DimCen = -0.09
Command Options
No Options.
Procedures
Creating center marks or center lines
Related Commands
DimLinear - places linear dimensions in drawings: horizontal, vertical, and rotated.
DimAligned - places aligned dimensions.
DimBaseline - places additional dimensions from a common baseline.
DimContinue - continues dimensions.
DimDiameter - places diameter dimensions.
DimRadius - places radius dimensions.
DimAngular - places angular dimensions.
DimLeader and Leader- places leaders with text, blocks, entities, or tolerances.
DimOrdinate - places x and y ordinate dimensions.
Tolerance - places tolerance tags in drawings.
Dim - places and edits dimensions at the 'Dimensioning command:' prompt.
Dim1 - places and edits a single dimension at the 'Dimensioning command:' prompt.
DimEdit - changes the wording and angle of dimension text; changes the angle of extension lines.
DimTEdit - changes the position of dimension text.
DdEdit - edits dimension text.
Properties - edits the properties of dimensions through a palette.
DimStyle - creates and edits dimension styles through the Drawing Explorer.
-DimStyle - saves and applies dimensions styles at the command line.
Style - sets the text style used by dimensions.
DimOverride - overrides the values of the current dimension style.
