Places linear dimensions horizontally, vertically, or rotated.
Accessing the Command
command bar: dimlinear
aliases: dimlin, dli, dimhorizontal, dimrotated, dimvertical
menu bar: Dimension | Linear
toolbar: Dimensions |
: dimlinear

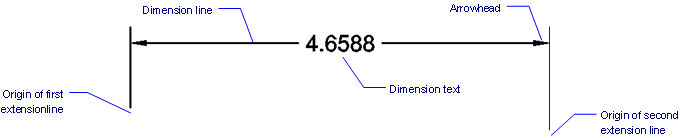

Prompts you in the command bar:
Origin of first extension line <Select entity>: (Pick a point; or press Enter to dimension an entity.)
Origin of second extension line: (Pick a point.)
[Angle/Text/Horizontal/Vertical/Rotated]: (Position the dimension line, or enter an option.)
Dimension text = xx.xx
Command Options
|
Option |
Description |
|

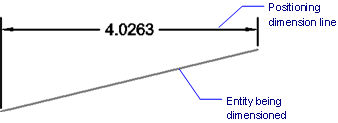

Dimensions an entity. Prompts you: Select entity to dimension - Select a line, polyline segment, arc or circle to dimension; other entities cannot be dimensioned with this option. [Angle/Text/Horizontal/Vertical/Rotated] - Position the dimension line or choose an option.
|
|
|
Specifies the angle of the text; useful for keeping text horizontal with inclined dimension lines. Prompts you: Angle of dimension text - specify the rotation angle of the text. |
|
|
Specifies the text; useful for overriding the default measurement generated by BricsCAD. Prompts you: Dimension text - specifies the replacement text. |
|
|
Forces the dimension to be horizontal. prompts you: Location of dimension line [Angle/Text] - Position the dimension line or choose an option. |
|
|
Forces the dimension to be vertical. prompts you: Location of dimension line [Angle/Text] - Position the dimension line or choose an option. |
|
|
Rotates the dimension by a specified angle. Prompts you: Angle of dimension line <0.0> - specify the angle of the dimension line. |
Procedures
To create a horizontal or vertical linear dimension
To create an aligned linear dimension
To create a rotated linear dimension

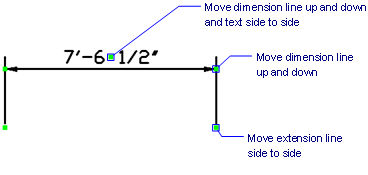

Grips Editing
Linear dimensions can be edited directly through grips:
Select the linear dimension. Notice the grips.
Drag the grips to perform the following actions:
Drag either grip on the dimension line to move the dimension line; the extension lines change length.
Drag the grip on the text to relocate it; the dimension line moves along, and a leader line is added, if required.
Drag either grip on the extension lines to move the extension line; the dimension line changes length.
Related Commands
DimAligned - places aligned dimensions.
DimArc - Places arc length dimensions.
DimBaseline - places additional dimensions from a common baseline.
DimContinue - continues dimensions.
DimDiameter - places diameter dimensions.
DimRadius - places radius dimensions.
DimCenter - places center marks.
DimAngular - places angular dimensions.
DimLeader and Leader- places leaders with text, blocks, entities, or tolerances.
DimOrdinate - places x and y ordinate dimensions.
Tolerance - places tolerance tags in drawings.
Dim - places and edits dimensions at the 'Dimensioning command:' prompt.
Dim1 - places and edits a single dimension at the 'Dimensioning command:' prompt.
AiDimFlipArrow - flips individual arrows of a dimension.
AiDimPrec - changes the displayed precision of existing dimensions.
DimEdit - changes the wording and angle of dimension text; changes the angle of extension lines.
DimTEdit - changes the position of dimension text.
DdEdit - edits dimension text.
Properties - edits the properties of dimensions through a palette.
DimStyle - creates and edits dimension styles through the Drawing Explorer.
-DimStyle - saves and applies dimensions styles at the command line.
Style - sets the text style used by dimensions.
DimOverride - overrides the values of the current dimension style.
